Rainscreen Clapboard Siding for an Energy-Efficient Island Remodel

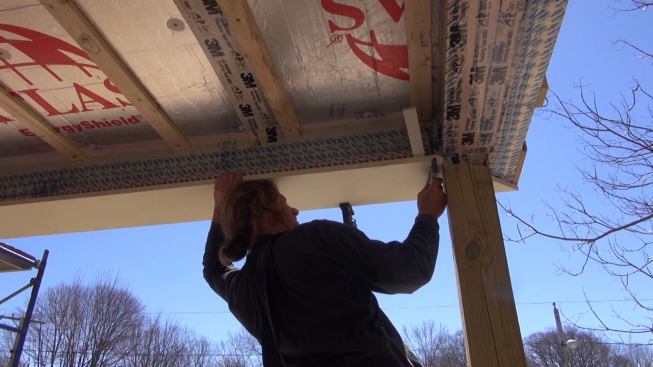

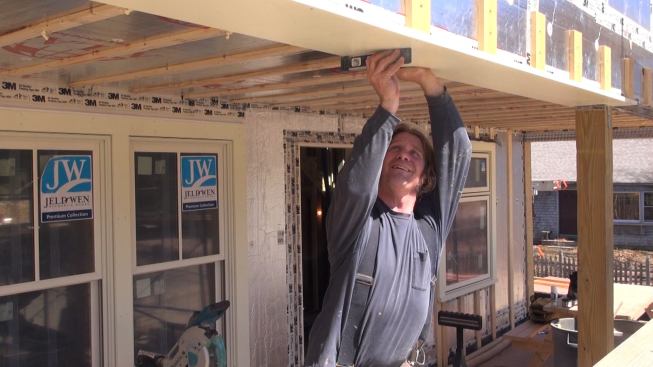

Carpenter Dale Cunningham installs the front porch beam trim.

Care was taken to not interrupt or puncture the air barrier at t… Read More Care was taken to not interrupt or puncture the air barrier at the front porch beam.

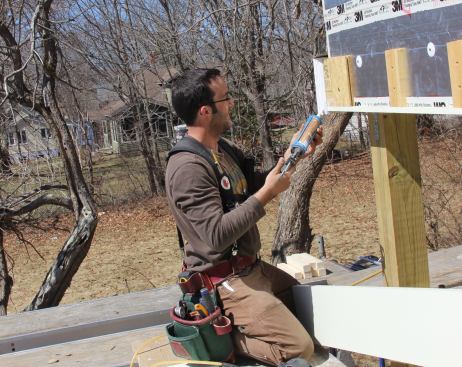

Project lead Mark Pollard applies a polyurethane sealant to the … Read More Project lead Mark Pollard applies a polyurethane sealant to the primed miter of the beam trim.

Pollard nails fascia to ¾-inch strapping applied over the… Read More Pollard nails fascia to ¾-inch strapping applied over the foil-faced rigid insulation. Trim elements are spaced off the foil faced polyiso foam to facilitate the drainage of wind driven water and drying of the wood trim. The beam trim shown here is unusual, Pollard points out: it is the only trim or siding element on the building exterior where the space behind the trim has no air inlet at the bottom or exhaust at the top for air to flow freely. However, the air space behind the wood trim, combined with a coat of primer and first coat of paint, should still add to service life of the wood and the paint job.

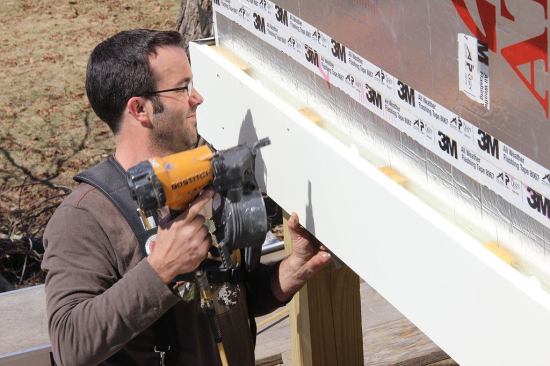

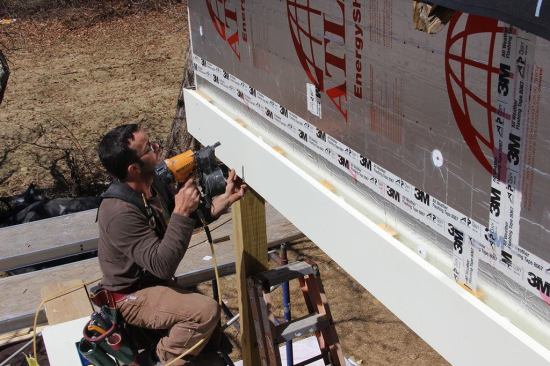

A closer look: Pollard fastens the pre-primed wood trim to the 1… Read More A closer look: Pollard fastens the pre-primed wood trim to the 1×4 rain screen furring using stainless steel ring shank nails.

Pollard places a piece of aluminum drip cap flashing over the po… Read More Pollard places a piece of aluminum drip cap flashing over the porch beam fascia. An air inlet and drain opening for the upper portion of the wall siding assembly will be installed at this location.

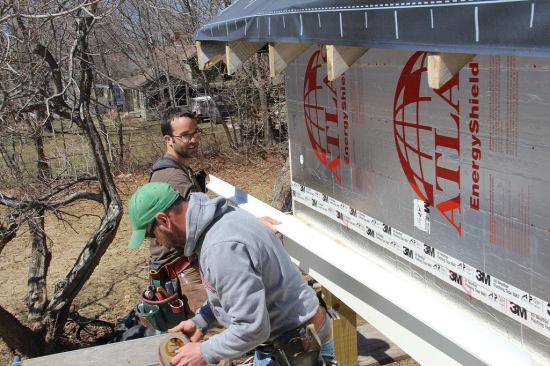

Nailing the cap flashing to the wall sheathing through the 3&quo… Read More Nailing the cap flashing to the wall sheathing through the 3" of continuous rigid foam is impractical; instead, Pollard and carpenter Shane Fenton seal the flashing to the face of the rigid insulation using 3M 8067 flashing tape.

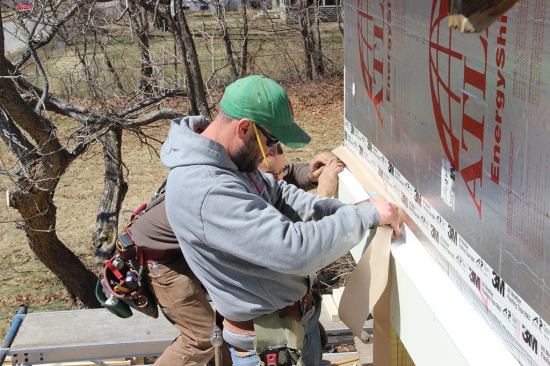

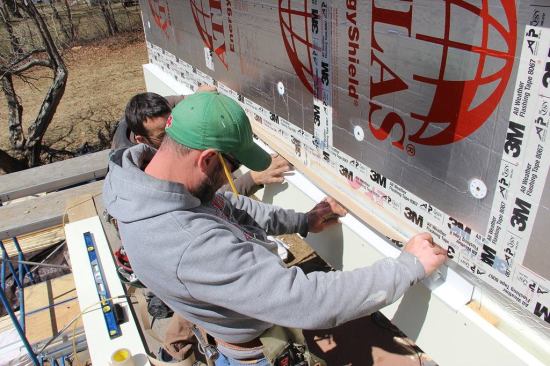

Fenton removes the paper backing from the tape as Pollard lines … Read More Fenton removes the paper backing from the tape as Pollard lines up the flashing and adheres the top edge of the tape.

The acrylic adhesive tape is tenacious so care is taken to make … Read More The acrylic adhesive tape is tenacious so care is taken to make sure the flashing is pitched for drainage before being pressed into place. The tape will be pressed into place with a hard rubber j-roller to further increase the bond of the adhesive.

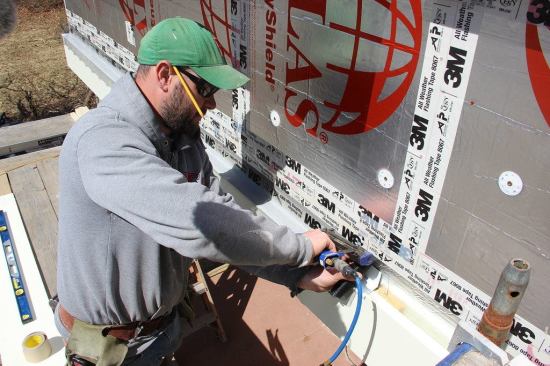

Shane Fenton uses a pneumatic stapler to tack insect screen over… Read More Shane Fenton uses a pneumatic stapler to tack insect screen over the cap flashing. Later, 1×4 furring will be installed for the rain screen siding and the insect screen will be folded up and onto the face of the 1×4's.

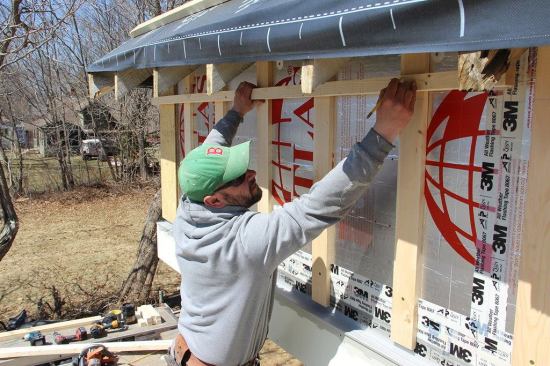

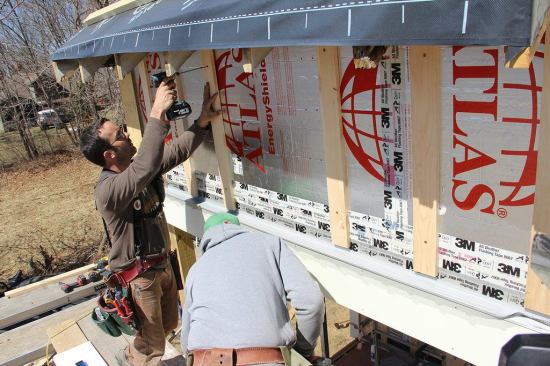

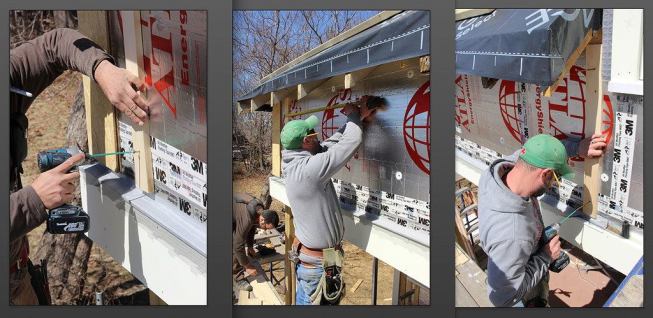

Pollard fastens a piece of 1×4 furring over the rigid insulation… Read More Pollard fastens a piece of 1×4 furring over the rigid insulation (left), screwing the strapping to the sheathing behind the foam using 5-?-inch screws. Hooking onto the first piece of furring, Fenton lays out the furring locations for the rest of the wall (center), marking on the foam with a Sharpie marker, then screws the rightmost piece of furring to the wall (right).

A look at the mostly furred-out wall shows the key durability de… Read More A look at the mostly furred-out wall shows the key durability details of the rain screen system: the foil drainage plane sealed with tape, the furring which creates an air space for drainage and ventilation, and the flashing and bug barrier at the bottom which will allow inflow of air into the cavity, equalizing air pressure across the siding and permitting incidental water to drain out of the assembly.

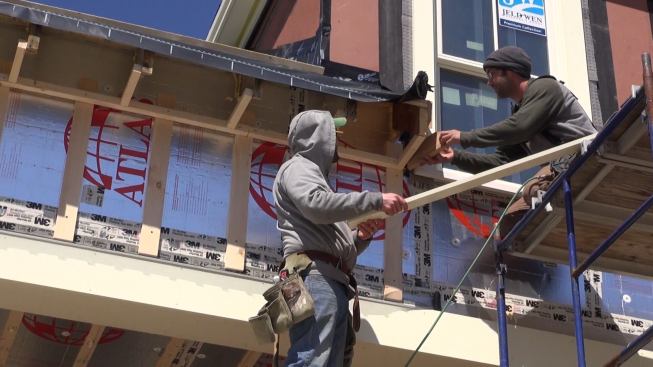

Pollard and Fenton pack out cornice return framing at the junctu… Read More Pollard and Fenton pack out cornice return framing at the juncture between the roof overhang and the second-story dormer in the building’s hip roof. Roof and trim details for this house were complicated by the inconsistent dimensions of the old home’s original roof framing. Despite meticulous planning and collaboration among the homeowner, designer, and contractor at earlier stages, Pollard and Fenton found themselves having to work out some trim details and arrangements on the fly.

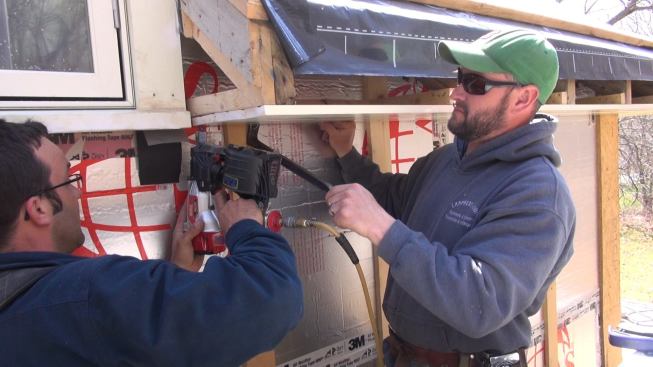

Fenton persuades the tongue-and-groove board for the soffit into… Read More Fenton persuades the tongue-and-groove board for the soffit into position while Pollard pins it in place near the intersection where the eave meets the dormer window.

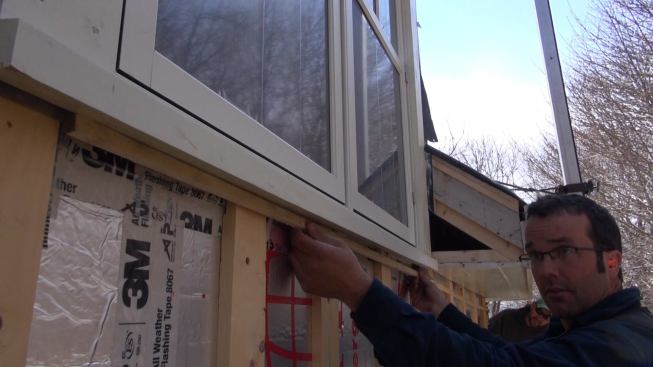

Pollard places a thin spacer under the soffit and window trim, p… Read More Pollard places a thin spacer under the soffit and window trim, padding out the wall to allow an exhaust point for air movement in the cavity behind the siding and trim in the rain screen assembly.

Pollard fastens Cor-A-Vent SV-3 corrugated plastic vent channel … Read More Pollard fastens Cor-A-Vent SV-3 corrugated plastic vent channel material under the spacer, leaving a ?-inch gap for air to flow through the Cor-A-Vent from the rain screen cavity. This will allow air behind the siding to exhaust to the outside.

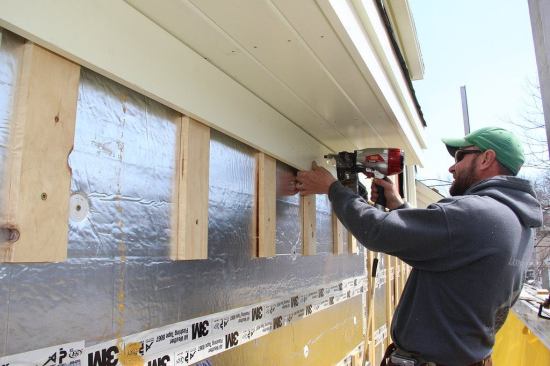

Fenton nails the frieze board over the plastic vent and 1×4 furr… Read More Fenton nails the frieze board over the plastic vent and 1×4 furring. The top edge of the clapboard siding will slide into the gap between the frieze and the 1×4's, leaving a 3/8-inch gap for the exhausting air.

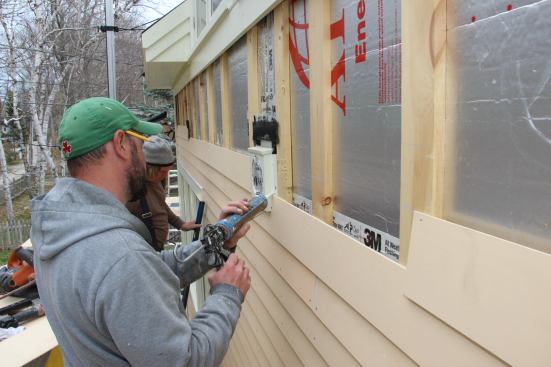

Fenton and Cunningham install the factory primed and first coate… Read More Fenton and Cunningham install the factory primed and first coated vertical grain red cedar clapboards. Field cuts are end-primed, then then bedded in polyurethane sealant where they contact trim elements.

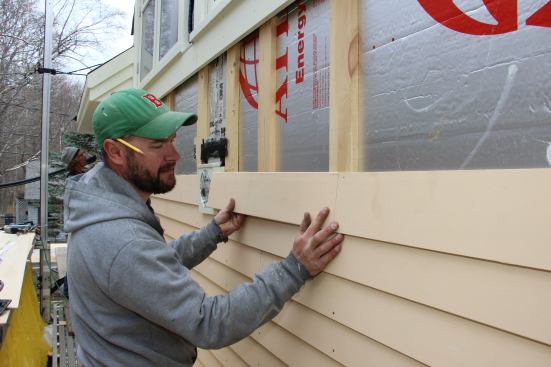

Fenton “dry fits” a clapboard. He will prime the end cut, th… Read More Fenton “dry fits” a clapboard. He will prime the end cut, then slip a square of asphalt paper behind the joint for secondary weather protection before pinning the end of the clapboard in place.

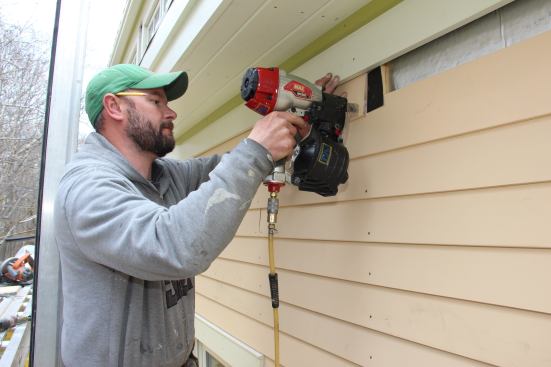

Fenton nails the end of a clapboard. Shown here is the scrap of … Read More Fenton nails the end of a clapboard. Shown here is the scrap of asphalt paper, slipped behind the board to protect against rain intrusion if the joint opens up in service.

Fenton places the final clapboard at the top of the wall. The ca… Read More Fenton places the final clapboard at the top of the wall. The carpenters took care to lay out the siding to finish with a full course at the top, where the siding meets the frieze board. This ensures that the thin top edge of the top clapboard will slide up into the gap behind the frieze, leaving a gap between the two pieces for free airflow in and out of the rain screen drainage gap.
