Create A Trimless Door With Architectural Z Shadow Bead

Create a clean and modern look by incorporating trimless doors into your design.

2 MIN READ

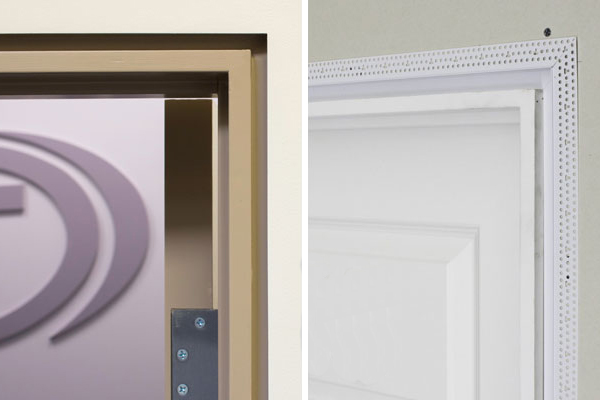

Use Z Shadow Bead to create a modern frameless door.

Use Z Shadow Bead to create a modern frameless door.

Create a clean and modern look by incorporating trimless doors into your design. The process is made easy and affordable with Trim-Tex Architectural Z Shadow Bead. When installing trimless doors, you can use either a miter saw or a pair of snips. Either way, follow these simple guidelines for best results.

Install the doorframe prior to the drywall for accurate measurements. Ensure that the doorjamb is the overall width of the wall and drywall thickness combined. Be sure to include space between the end of the drywall and doorjamb to accommodate the Z Shadow Bead. This distance must be 1/8-inch wider than the overall width of Architectural Z Shadow Bead.

Miter Saw Installation

Make sure that the miter saw has a fine tooth blade (100+ teeth) before beginning. Use a piece of drywall the same thickness of the bead to support the Architectural Z Shadow Bead for cutting. Place the mud leg over the drywall (as shown) before cutting the Architectural Z Shadow Bead at a 45-degree angle. Dry fit the bead around the doorframe before installing. Before installation of the bead, apply a dab of Bondaflex #700 Adhesive Calk to the mitered edges. Use a scrap piece of bead to remove any excess adhesive.

Snip Installation

If you do not have access to a miter saw, simply use a pair of snips to achieve the minimalist look of trimless doors. Trim-Tex recommends using Irwin Aviation Snips since they are stronger and require less force to cut. Place the Architectural Z Shadow Bead over the drywall and up to the door frame. Overlap the two pieces of bead and use a pencil to mark where they meet. Use a utility knife to score the center of the return leg on the Architectural Z Shadow Bead. Then use a pair of snips to cut along the pencil line and tear off the return leg.

Dry fit the bead on the doorframe to ensure there are no unsightly gaps between the beads. Place a dab of Bondaflex Adhesive Caulk on the mitered ends and wipe away any excess. Staple the bead into place before mudding.

To get more information about Architectural Z Shadow Bead and to request free samples, visit the product page here.
