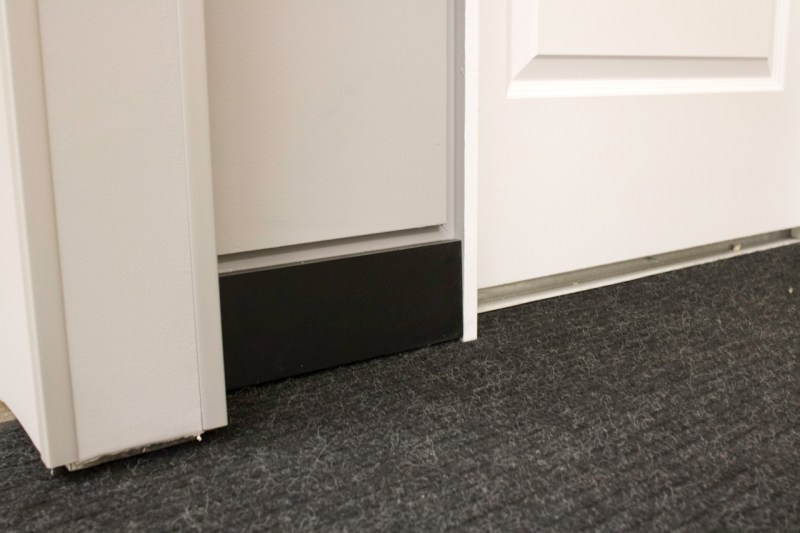

A “reveal detail” can be used at the base of a wall for a modern “no base” look, or over baseboard to create an elegant shadow line to offset and define the trim. While this type of interior detailing is often associated with high-end interiors, it can be implemented on a job using Architectural Z Shadow Bead with very little effort and without significant added cost. Follow these simple steps to expedite the installation process
Installation Techniques
For best results, install the floor prior to the drywall and baseboard. If the floor is uneven, trim the baseboard as needed to accommodate the irregularities. Determine the desired height of the baseboard before installing the drywall. It is important to make sure the bottom of the drywall is level during installation. If you determine that the floor is uneven after measuring, incorporate the difference when installing the drywall to prevent a gap once the Architectural Z Shadow Bead and baseboard are installed.
Once baseboard height is determined, take a scrap piece of drywall to act as a guide when installing the drywall to ensure adequate room for baseboard. Screw the spacer into place temporarily and simply rest the sheet of drywall on it during installation to ensure accurate measurements for baseboard installation. After drywall installation, remove the spacer before installing Architectural Z Shadow Bead.
Apply two coats of 847 Spray Adhesive directly to the Architectural Z Shadow Bead. Attach the mud legs to the drywall and staple every 4” – 6” with 1/2” staples. Mud, paint and install baseboard ensuring that there are no unsightly gaps.
Upgrade your baseboards today by incorporating reveal details into your design with Architectural Z Shadow Bead. To get more information about Architectural Z Shadow Bead and to request free samples, visit the product page here.
