Tiling a Walk-In Shower: Chapter 2 – Adding Floor Heat

After the mud base is in place, the next step is to install Ditra Heat mat.

3 MIN READ

Bedding the Sheets

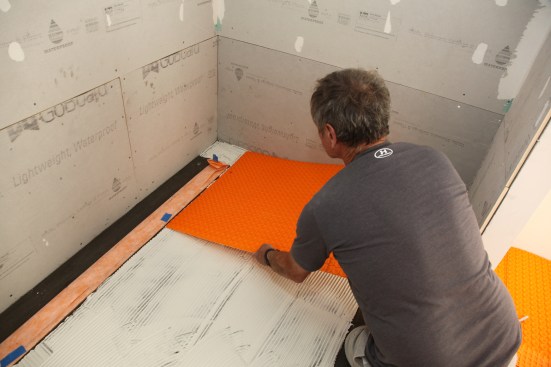

When I was done spreading the thinset, I carefully set the first course of membrane sheets into place, taking care to get the lugs lined up from one sheet to the next.

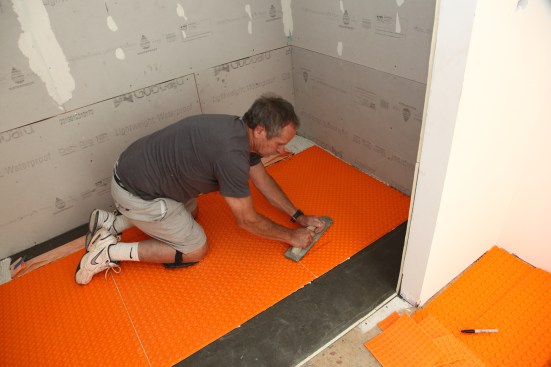

When the sheets were placed where I wanted them, I went over the entire surface with all my weight pressing down on a wooden float. This action fully beds the membrane into the thinset.

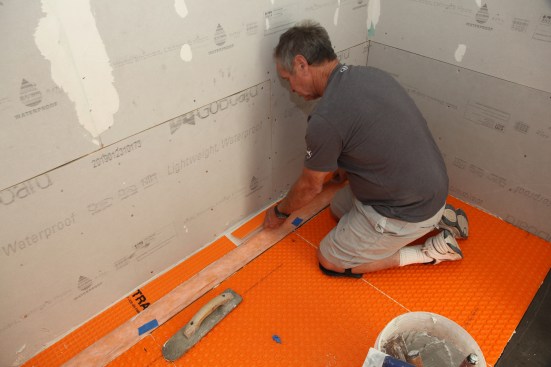

Areas around the linear drain would not be heated, so I filled in those areas with regular Ditra Mat that I had left over.

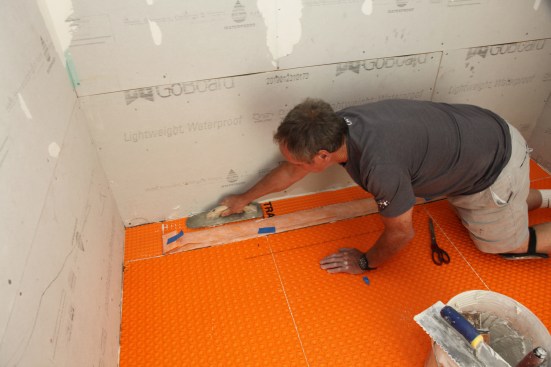

I made sure to go over those areas with the wooden float as well. When all those areas were finished, I continued with the regular courses of membrane.

Thinset for the Heat Sheets
Heat in the Main Bathroom

About the Author

Tom Meehan

Tom Meehan, author of Working with Tile, is a second-generation tile installer who lives and works in Harwich, Mass.
