Detailing Inside Corners With TPO

Seams at inside corners leave a potential pinhole leak where the deck and walls intersect.

Seams at inside corners leave a potential pinhole leak where the deck and walls intersect.

Thermoplastic polyolefin, or TPO, is a fabric-reinforced plastic membrane that’s reportedly more resistant to punctures than EPDM. It can be glued down (fully adhered), mechanically attached or ballasted. All seams must be sealed with a heat gun specially made for this purpose.

TPO is increasingly common as a roofing under roof-decks, but care needs to be taken particularly with inside corners at roof-wall intersections.

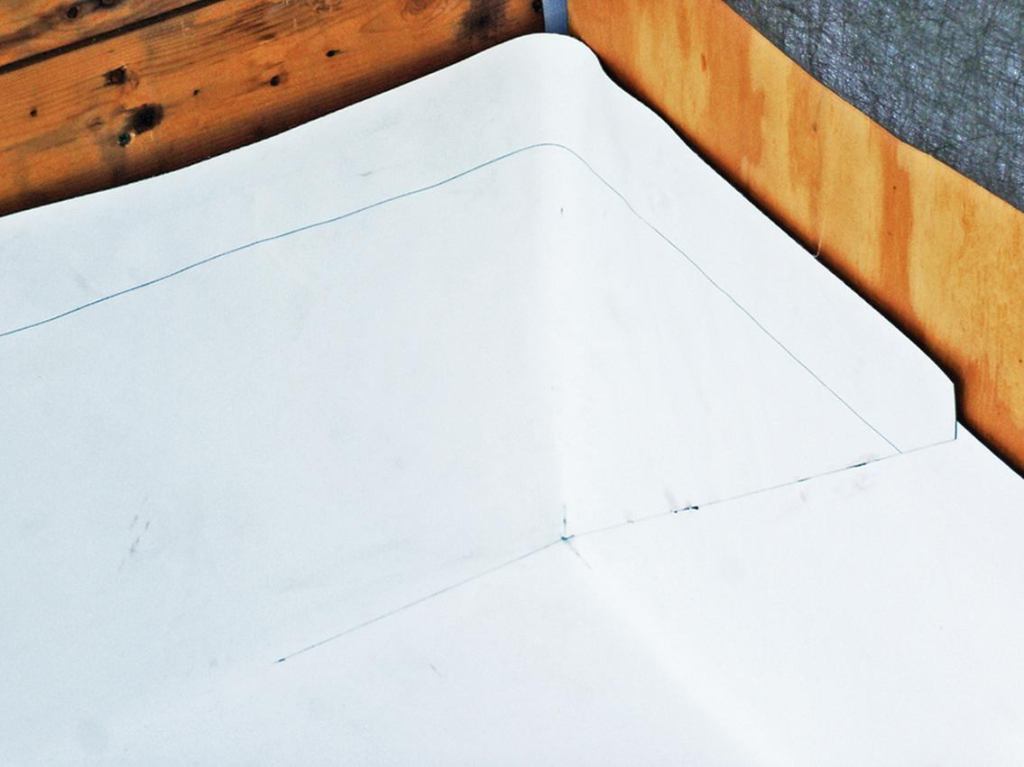

A prefabricated corner piece is heat-welded to all three surfaces.

A prefabricated corner piece is heat-welded to all three surfaces.

Peel-and-stick membrane flashing adhered to the sheathing serves as a counterflashing. It will later be covered with housewrap.

Peel-and-stick membrane flashing adhered to the sheathing serves as a counterflashing. It will later be covered with housewrap.

For more about detailing TPO, as well as EPDM, built-up roofing and other low-slope roofing options, visit the JLC Field Guide.
